Area of application
|
Industrial
|
|
Cutting size paper (mm x mm)
|
6 x 50
|
|
Cutting type paper
|
Cross cut
|
|
Security level ISO/IEC 21964 (DIN 66399)
|
|
|
Shredding material
|
Paper with staples and paper clips, Crumpled paper, CD / DVD / Blu-ray, Plastic card, Floppy disk
|
|
Waste disposal solution
|
Metal frame with reusable bag
|
|
Intake width (mm)
|
440
|
|
Inlet / desk height (mm)
|
1.200
|
|
Sheet capacity (80g/m²)
|
110 - 120
|
|
Throughput
|
approx. 325 kg/h
|
|
Cutting speed (80g/m²) mm/s
|
300
|
|
Bin volume (l)
|
400
|
|
Continuous Running
|
yes
|
|
Noise level (idle operation) dB(A)
|
61
|
|
Motor protection device with thermal sensor
|
yes
|
|
Power supply (V / Hz)
|
400 / 50
|
|
Other voltages available
|
yes
|
|
Product dimensions W x D x H (cm)
|
80 x 167 x 169
|
|
Product weight (kg)
|
443
|
|
Control operation
|
Buttons
|
|
Visual status indication for ...
|
Ready, Bin full, Door open, Overheat, Material jam, Oil needed
|
|
Auto reverse
|
yes
|
|
Internal conveyor belt
|
yes
|
|
Dosage paddles
|
yes
|
|
Overload protection
|
yes
|
|
Safety features
|
Emergency stop bar (optional)
|
|
Lockable master switch
|
yes
|
|
Bin full sensor
|
yes
|
|
Expansion of feed table
|
yes
|
|
Castors
|
yes
|
|
Parking brakes
|
yes
|
|
Material machine housing
|
Metal
|
|
Certificates / Listings
|
CE, UKCA
|
1 Only floppy disks / ID cards.
3 Only plastic cards with electronic chip.
Overview

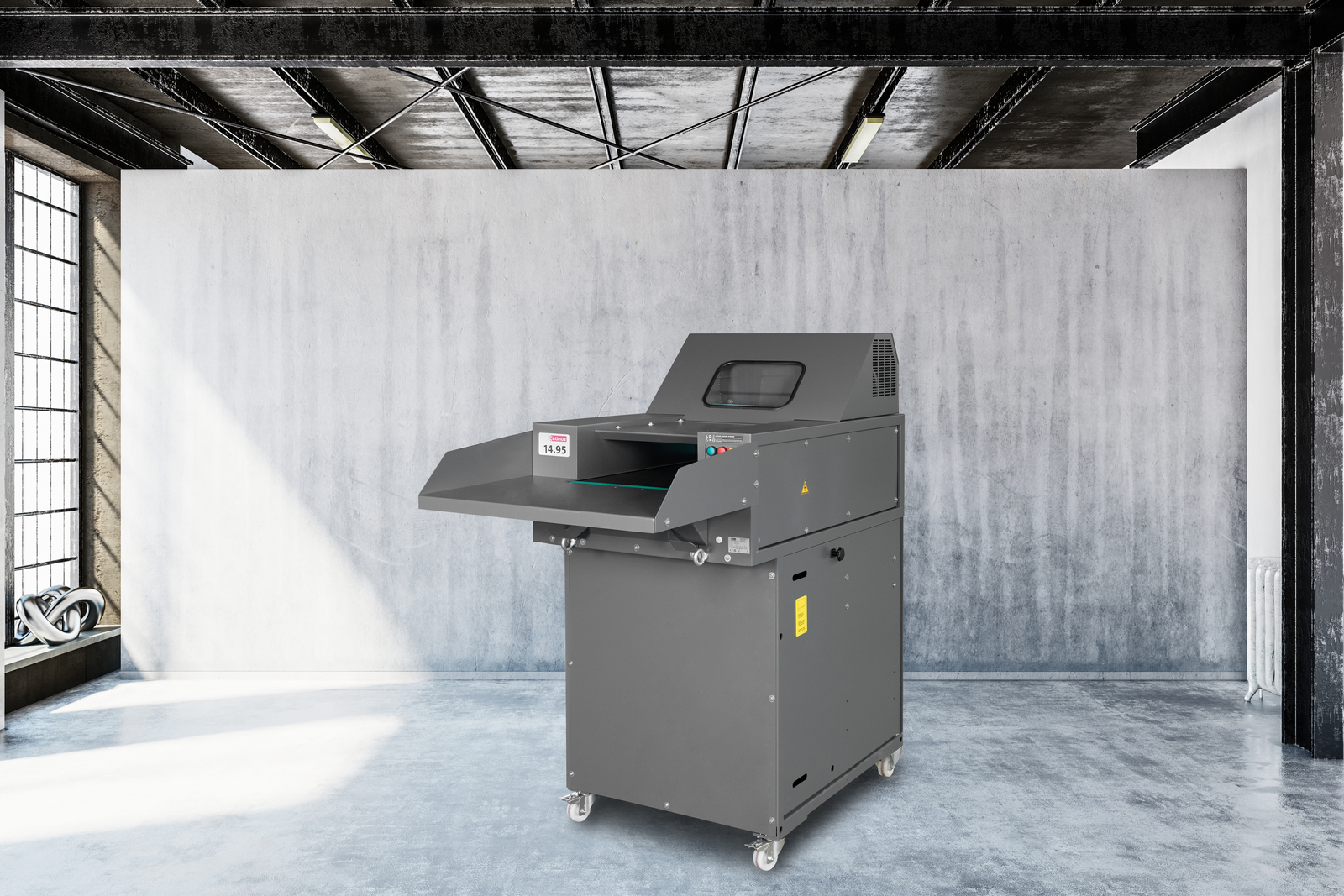

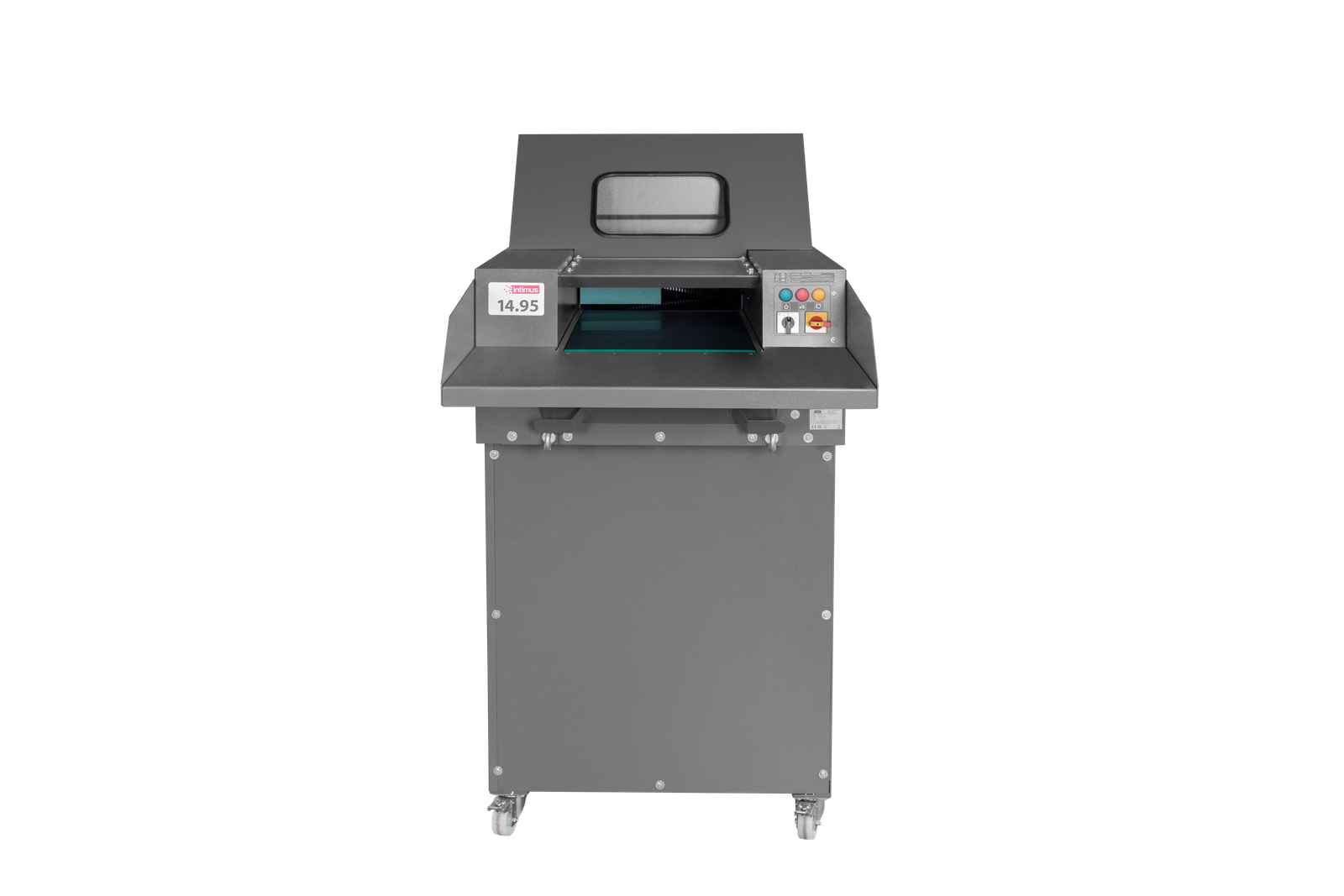

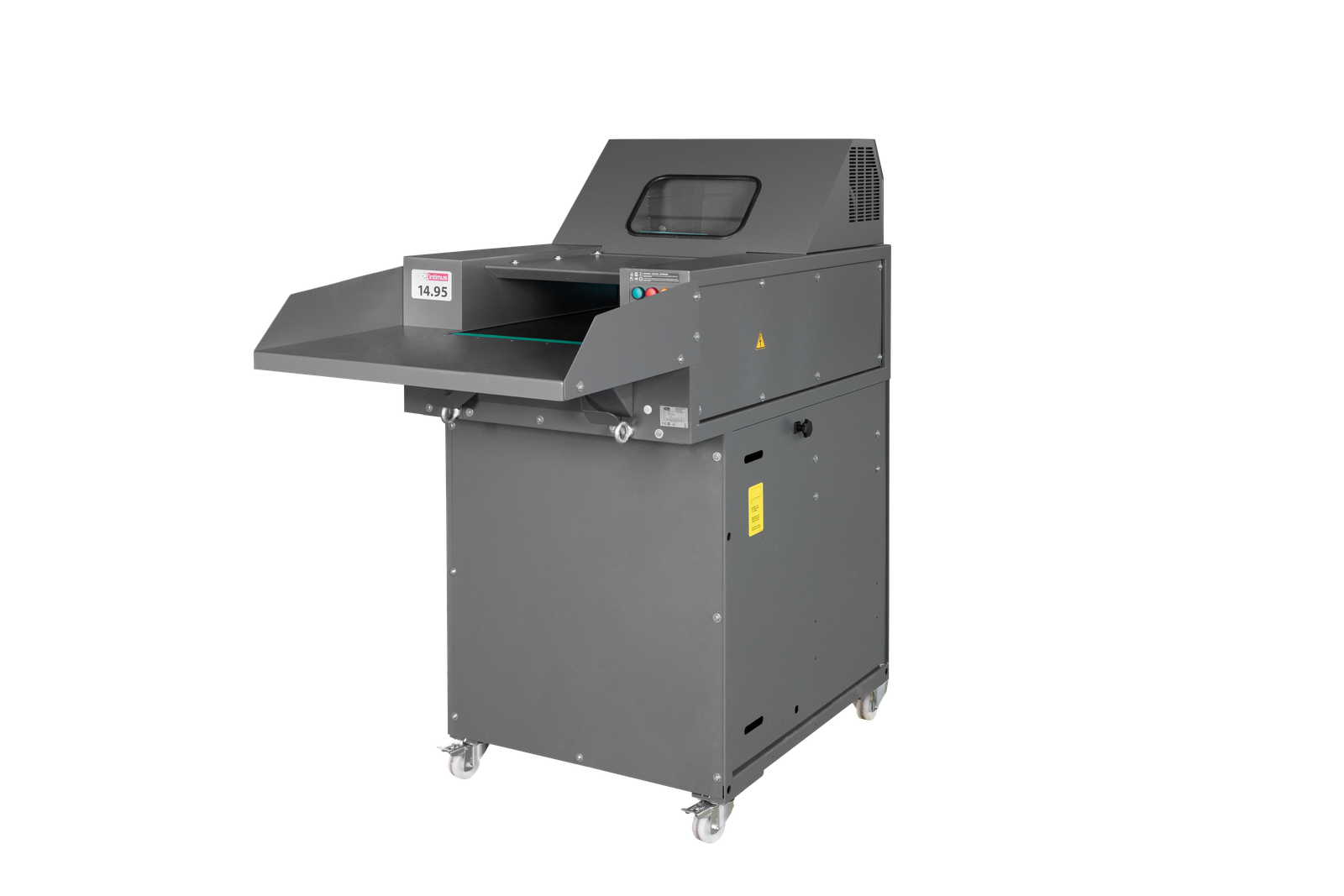

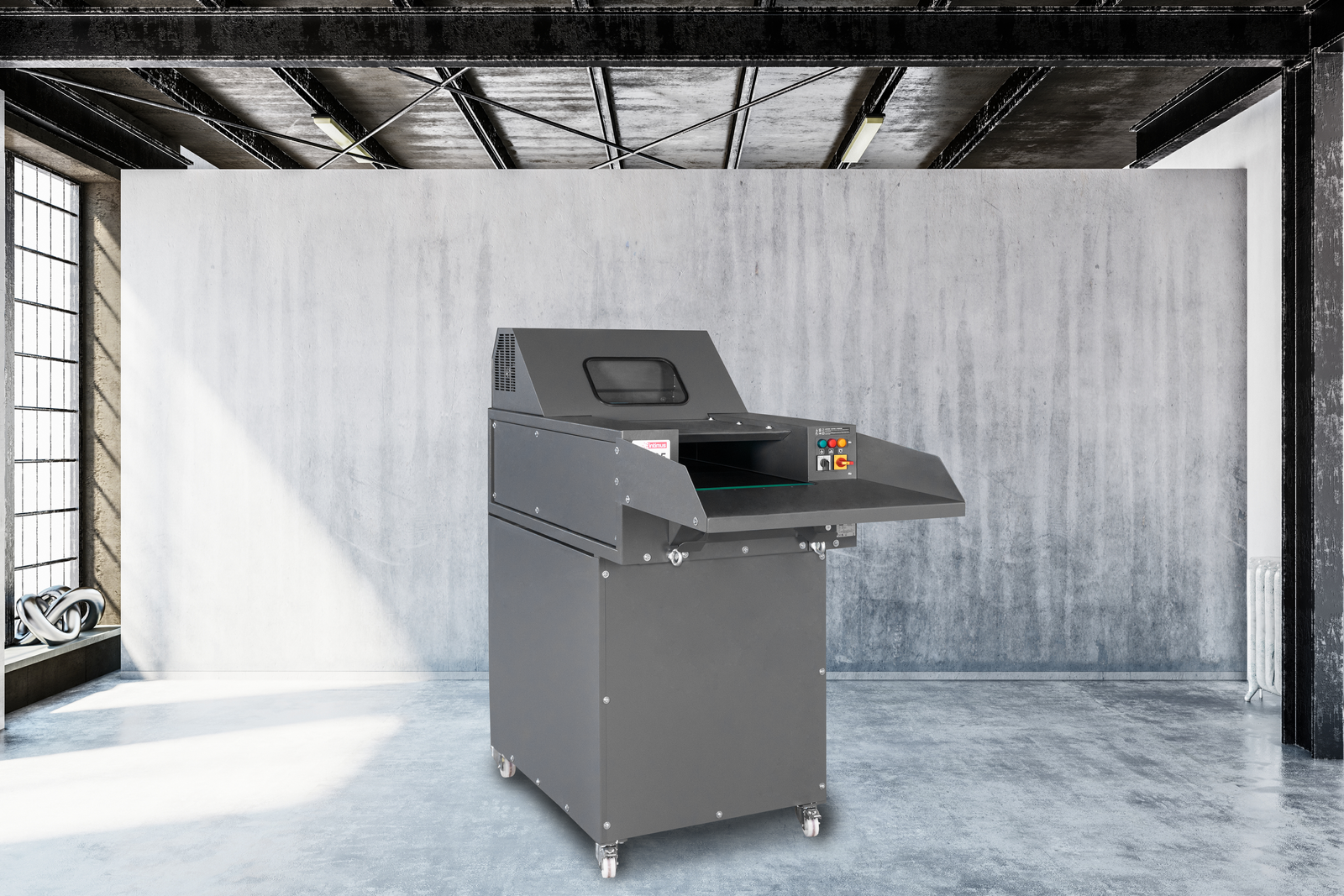

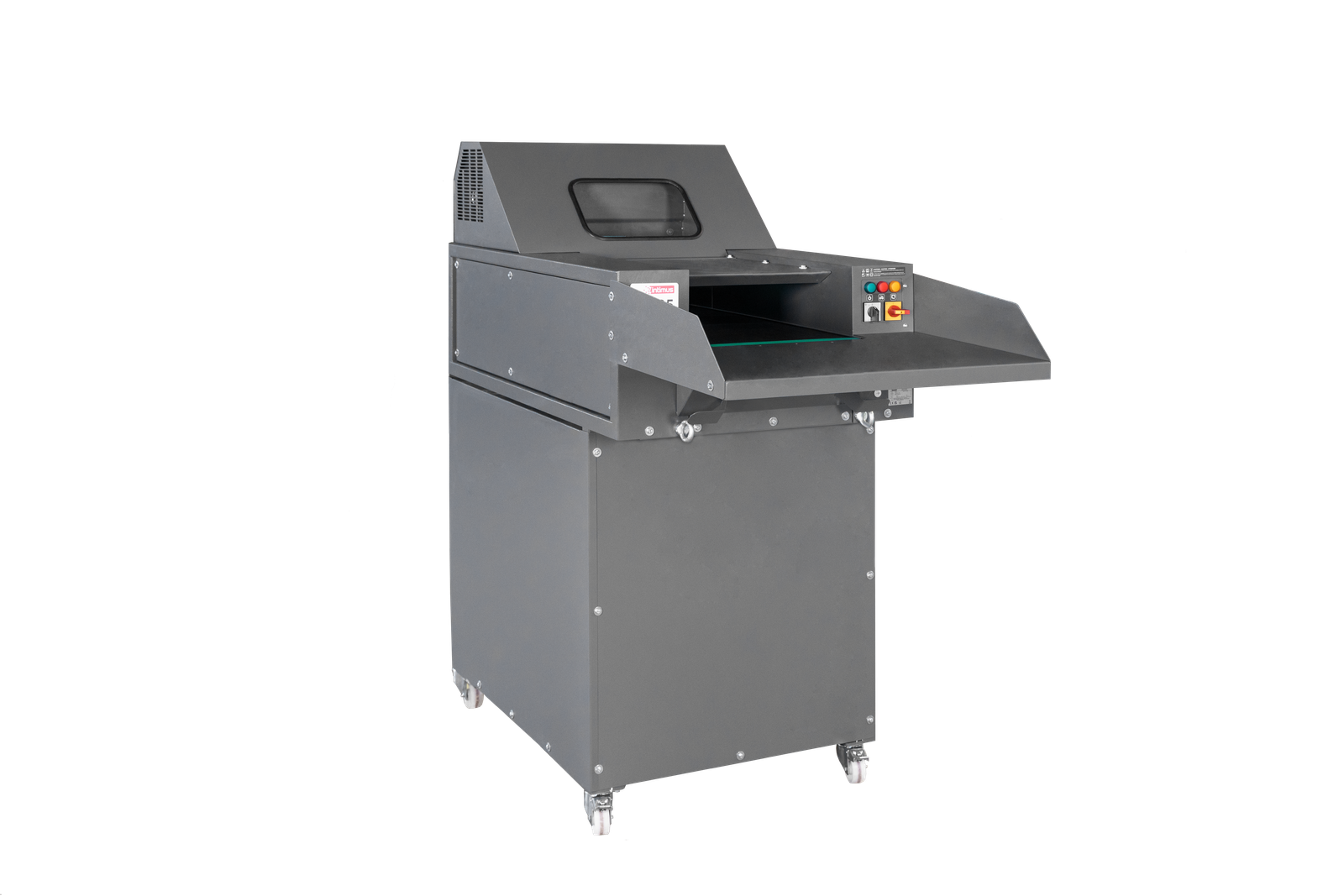

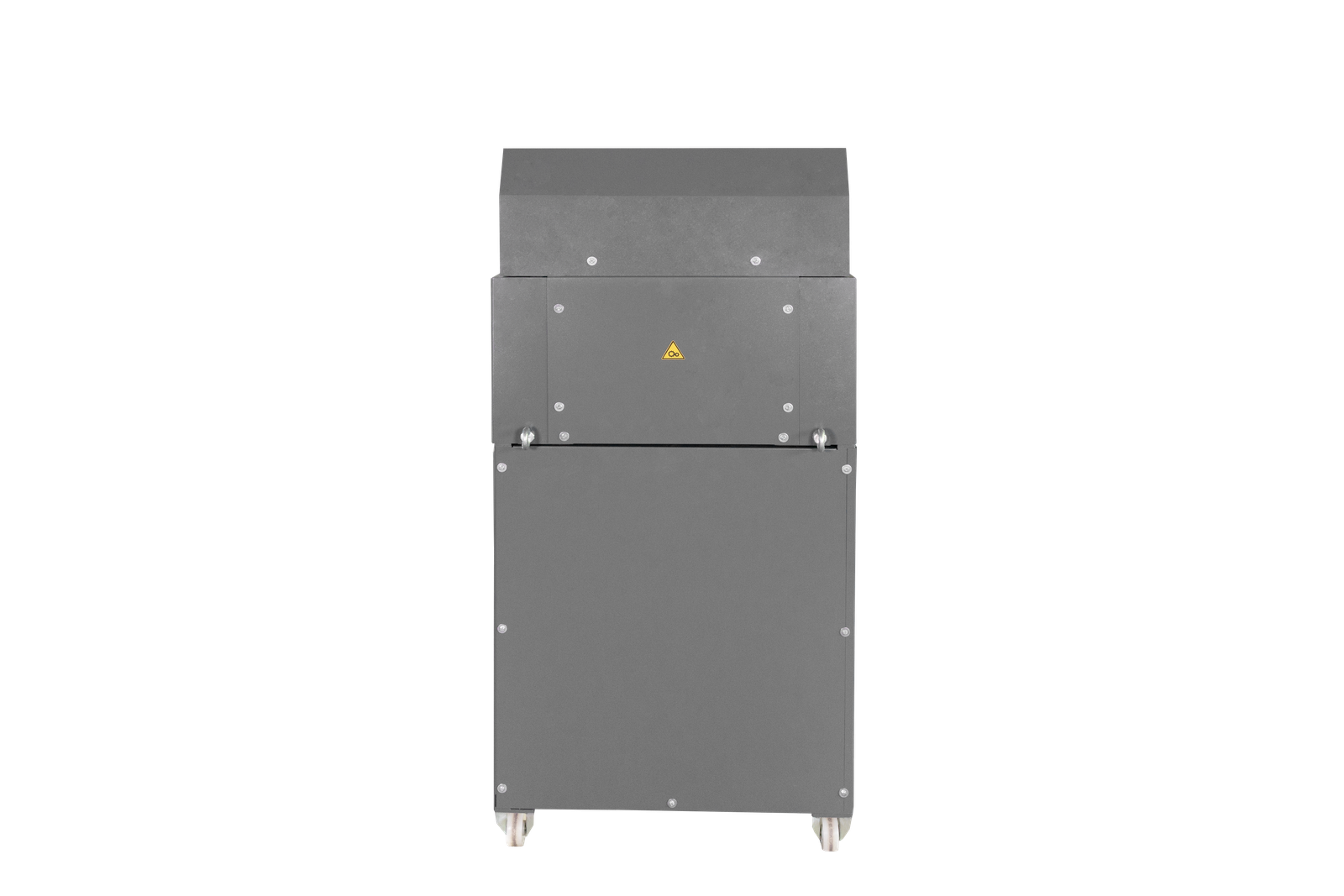

The intimus 14.95 features an expansive feed table, equipped with an integrated conveyor belt, ensuring a controlled, effortless, secure, and swift loading process. It features automatic start-stop-restart functionality and an automatic control system for reverse motion in case of paper overload. The broad 440 mm input tray facilitates convenient, rapid, and secure loading, capable of shredding CDs, crumpled paper, and credit cards in a single operation.

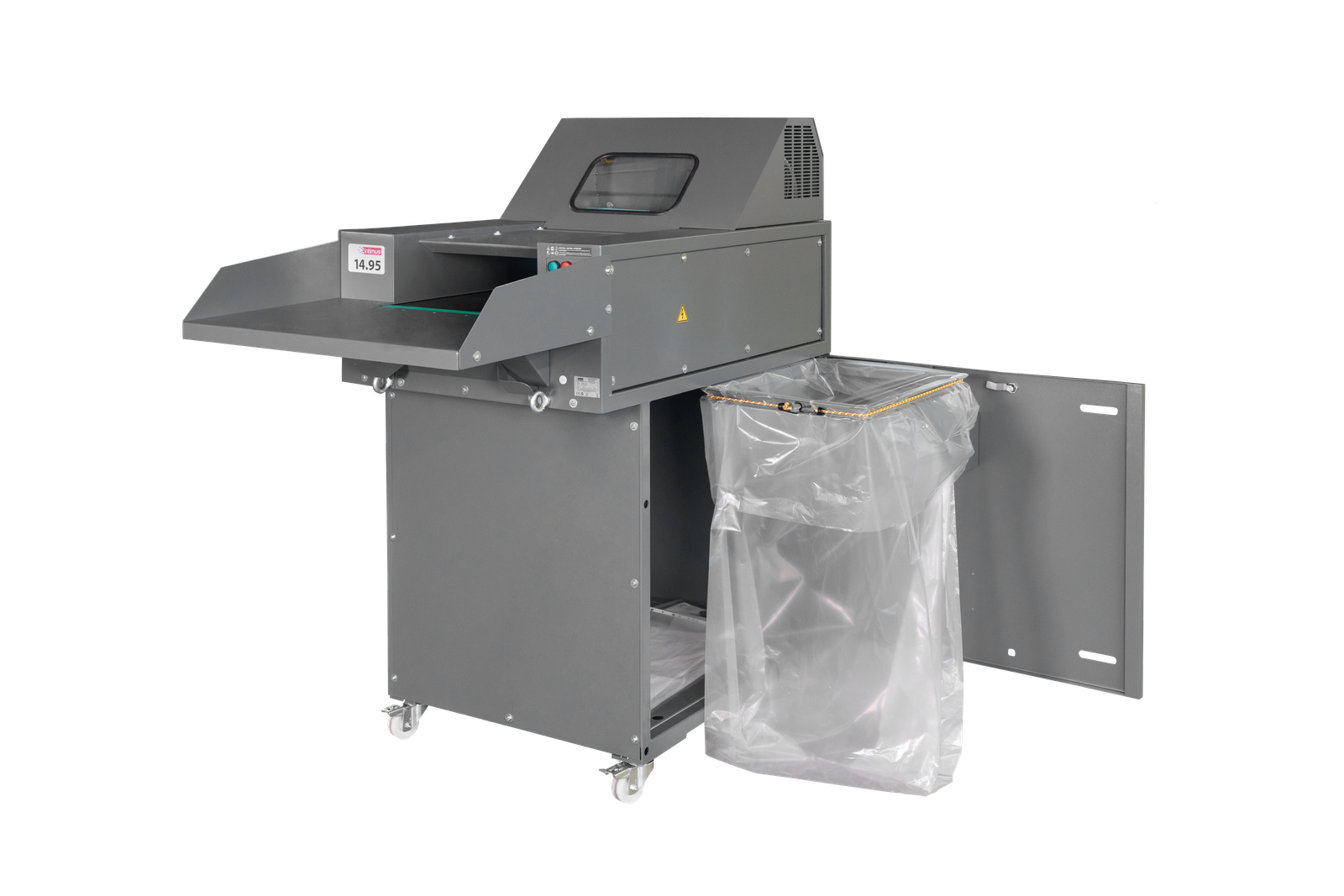

A 400-litre collection bag, mounted on a sliding metal frame is positioned beneath the cutting mechanism, accompanied by an automatic stop when the PE bag is full. The device boasts a reduced width (80 cm) to easily fit through most standard doors, complemented by wheels for effortless mobility. The intimus 14.95 model offers an optional automatic oiling system and features a clear and intuitive control panel.
With a shredding capacity of up to 120 sheets, the device operates at a low noise level of 61 dB(A). It adheres to security level P-3 and offers a spacious 400-litre collection volume for shredded material. The shredding speed of 300 mm/s is impressive, leading to a throughput of up to 325 kg/h.
Key Features
The particles sized at 6 x 50 mm meet the P-3 security standard outlined in DIN 66399 (ISO/IEC 21964).
The machine works with all kind of paper materials: Lose, clipped, stapled, bound, crumpled - it doesn't matter and in smal amounts also plastic materials such as credit cards, CDs and floppy disks can be destroyed.
Efficiently handles with a working width of 440 mm 110-120 sheets of 80 g/m² paper.
Ensures a swift and effective document processing with a throughput of approx. 325 kg per hour.
Easily fits through most standard doors with dimensions of 80 x 167 x 169 cm (WxDxH).
Enhanced mobility provided by castors, complemented by a sturdy metal cabinet base for convenience.
Equipped with an easily removable metal frame and a 400-litre waste bag for effortless disposal.

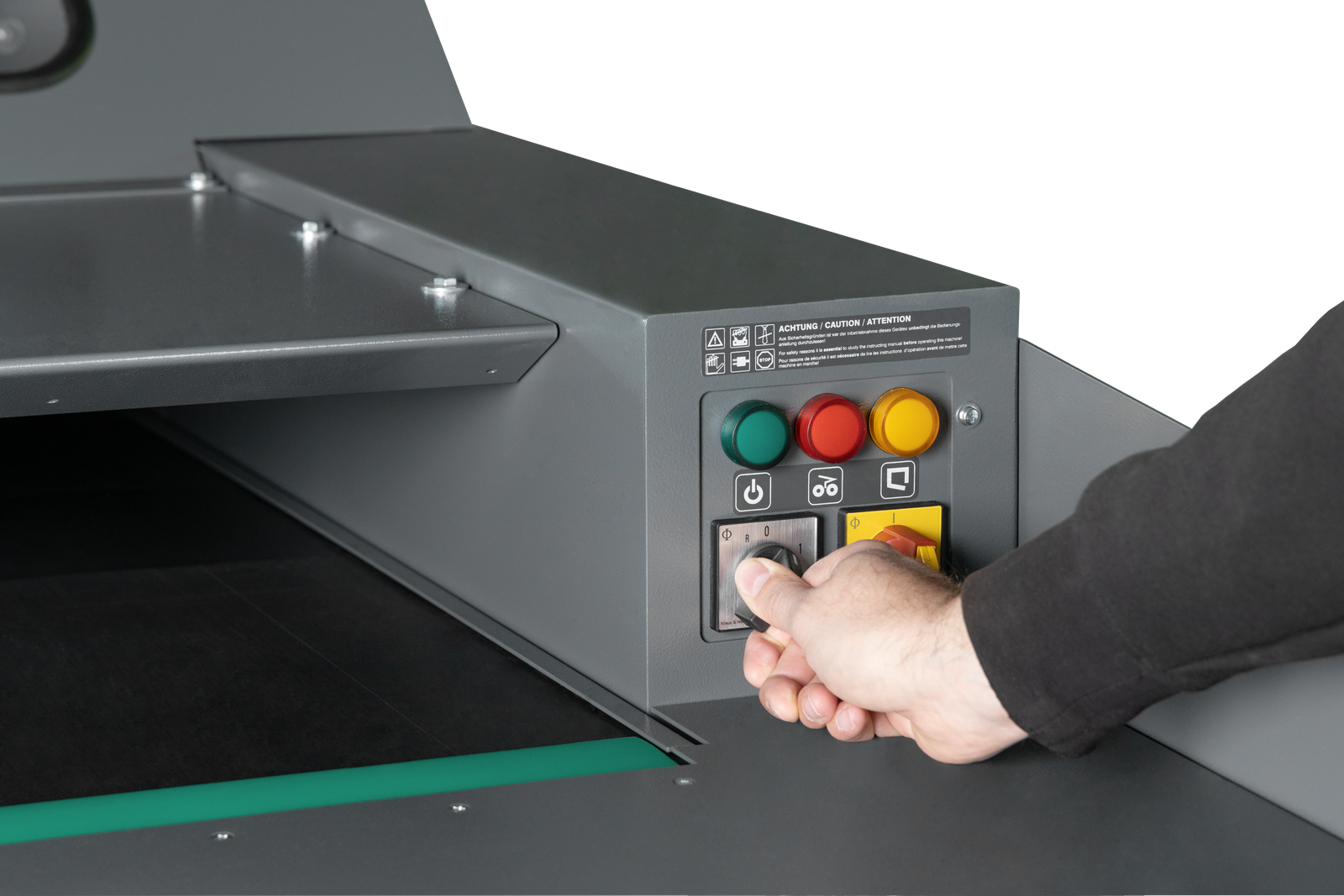

Featuring easy operation buttons and a lockable master switch.
Induction-hardened solid steel cutting cylinders / shaft ensure a long product lifetime.
Enables effortless document shredding with internal conveyor belt, dosage paddles, auto reverse, overload protection, bin full sensor and optional emergency stop bar and automatic oiler.
